Dimension Line Properties Dialog Box

This dialog box allows you to:
  • Customize a dimension line;
  • Change the default dimension line properties.

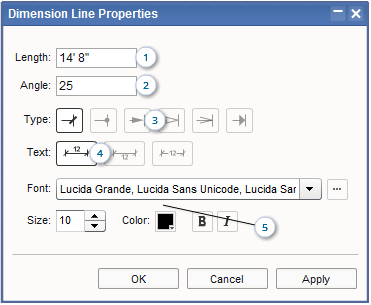

Floor Plan Software - Dimension Line Properties Dialog Box
  1. Specifies the length of the dimension line.
  2. Specifies the angle of the dimension line.
  3. Specifies the arrowhead type.
  4. Specifies the location of the dimension text.
  5. Allows you to change the text format.
